产品分类：气动元件
产品描述：IPMF快插式气管接头，内螺纹直通，穿板安装，纯铜体表面镀镍，选用优质不锈钢卡簧和NB···

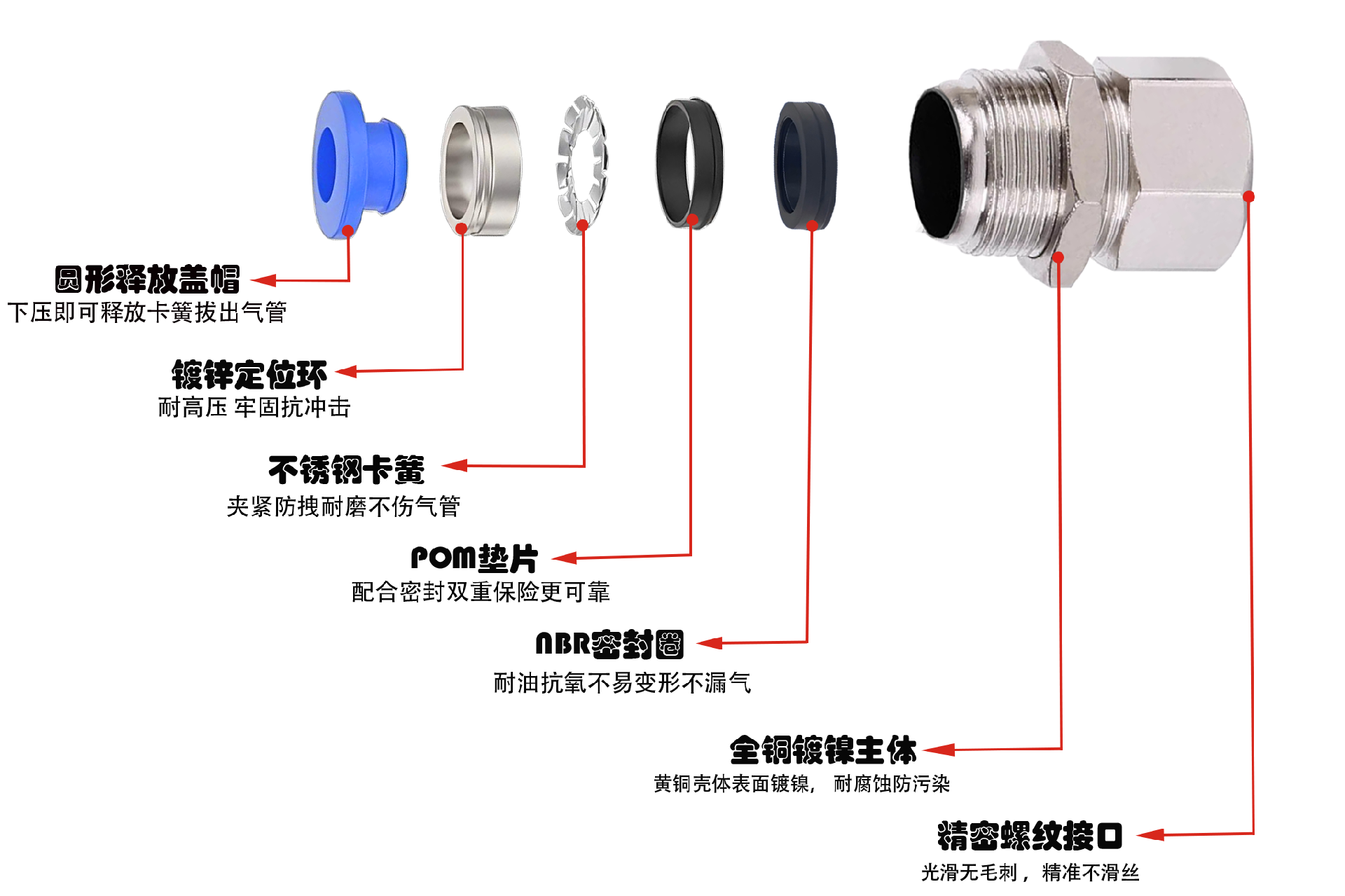

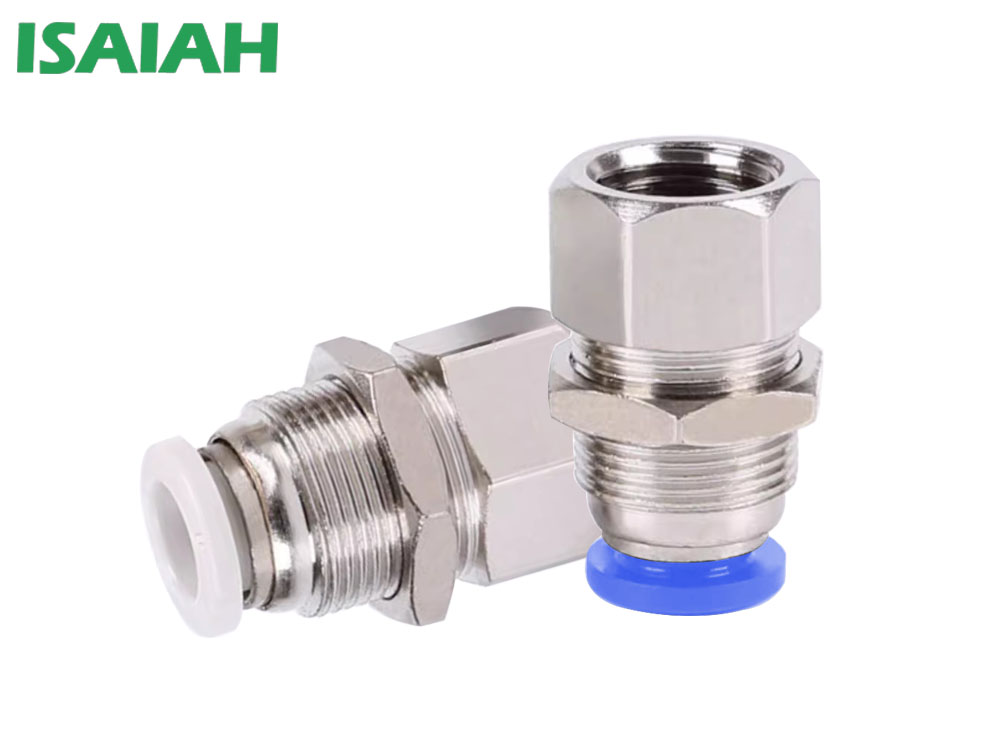

IPMF快插式气管接头，内螺纹直通，穿板安装，纯铜体表面镀镍，选用优质不锈钢卡簧和NBR密封圈，坚固防腐密封性能优秀，具有多种型号规格，广泛用于各类气动系统。气管插拔简单方便，即插即用，接头与气管连接部分安全可靠不跑气，且可360°旋转。
IPMF隔板内螺纹直通接头的技术参数：
| ★ 品牌：Isaiah/以赛亚 |
|
| ★ 使用流体：空气，真空 | |
| ★ 工作压力：0~1.0MPa(150psi) | |
| ★ 负压：-100Kpa(-29.5in·Hg) | |
| ★ 耐压：1.5MPa | |
| ★ 颜色：灰色/蓝色 | |
| ★ 主体材质：加厚镀镍黄铜 | |
| ★ 工作温度：-20至70°C(-4至158°F) | |
| ★ 适用软管：PU管、尼龙管 |

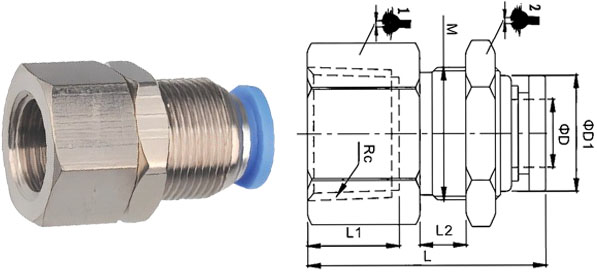

IPMF隔板内螺纹直通接头的规格型号表：
| 型号 | ￠D | RC | L1 | L2 | L | ￠D1 | 1 | 2 | M |
| IPMF04-M5 | 4 | M5 | 5.5 | 6 | 21 | 10 | 14 | 14 | M12x1 |
| IPMF04-01 | RC1/8 | 8.5 | 6 | 24 | 10 | 14 | 14 | M12x1 | |
| IPMF04-02 | RC1/4 | 11 | 6 | 26.5 | 10 | 17 | 14 | M12x1 | |
| IPMF06-M5 | 6 | M5 | 6 | 7 | 22.5 | 12 | 17 | 17 | M14x1 |
| IPMF06-01 | RC1/8 | 8.5 | 7 | 24.8 | 12 | 17 | 17 | M14x1 | |
| IPMF06-02 | RC1/4 | 11 | 7 | 19.5 | 12 | 17 | 17 | M14x1 | |
| IPMF06-03 | RC3/8 | 12 | 7 | 30.5 | 12 | 21 | 17 | M14x1 | |
| IPMF06-04 | RC1/2 | 14 | 7 | 33 | 12 | 24 | 17 | M14x1 | |
| IPMF08-01 | 8 | RC1/8 | 8.5 | 7.5 | 26.5 | 14 | 19 | 19 | M16x1 |
| IPMF08-02 | RC1/4 | 11 | 7.5 | 32 | 14 | 19 | 19 | M16x1 | |
| IPMF08-03 | RC3/8 | 12 | 7.5 | 34.3 | 14 | 21 | 19 | M16x1 | |
| IPMF08-04 | RC1/2 | 14 | 7.5 | 36.5 | 14 | 24 | 19 | M16x1 | |
| IPMF10-01 | 10 | RC1/8 | 8.5 | 9.5 | 30 | 17 | 24 | 24 | M20x1 |
| IPMF10-02 | RC1/4 | 11 | 9.5 | 32.5 | 17 | 24 | 24 | M20x1 | |
| IPMF10-03 | RC3/8 | 12 | 9.5 | 34 | 17 | 24 | 24 | M20x1 | |
| IPMF10-04 | RC1/2 | 14 | 9.5 | 38 | 17 | 24 | 24 | M20x1 | |
| IPMF12-01 | 12 | RC1/8 | 8.5 | 10 | 31.5 | 20 | 24 | 26 | M22x1 |
| IPMF12-02 | RC1/4 | 11 | 10 | 34 | 20 | 24 | 26 | M22x1 | |
| IPMF12-03 | RC3/8 | 12 | 10 | 35 | 20 | 24 | 26 | M22x1 | |
| IPMF12-04 | RC1/2 | 14 | 10 | 37 | 20 | 24 | 26 | M22x1 |
